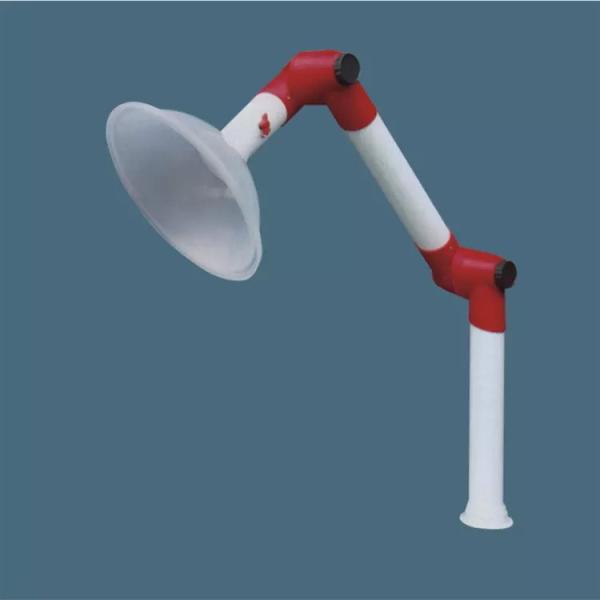

    Universal Lab Extraction Arm Chemical Lab Fume Extractor Arm Island Hood

    Universal Exhaust Hood Island Hood for Chemical Laboratory

    Tubes and joints of the system are made of PP, Which has excellent chemical stableness, and is highly endurable to the corrosion and contamination of chemical agents;


    The front cover is made of PC,Which is good at anti-erode,and anti-heating,high strength,and cann maintain the shape in high temperature(110℃)Smoke environment and has good transparence.


    Specification


    Joint:High grade PP, to be 360° swiveled, dismantled and assembled easily for cleaning.
    Guiding ring:Low-friction treated rubber.
    Center bolt:304# stainless steel.
    Adjustable joint knob:High grade PP with a moded-in s/s bearing locking with center bolt.
    Damper:To manually adjust air flow with a knob.
    Dome/cup hood:High grade PP/PC.
    Installation bracket:Injection of plastics from a complete mold,mounting panel strongly conecting to the joint.
    Optional Cover:Used for covering around the tube cutout on the ceiling.
    Features:

    1. This universal fume extraction hood series prouducts are specially designed and manufactured for protecting environment of the modern laboratory.


    2. They are flexible, easy to operate, and can keep air of the laboratory clean by exhausting harmful smoke effective


    3. Real stuff, perfect combination of advanced design and excellent technics.


    Installation method of universal extraction hood

    1. According to the workplace and the installation position of indoor environment choose extraction hood, fixed at the top of a smallpox hole punch, use M8 expansion screws to fixed frame on the top
    2. Inserted the expansion pipe fixed frame exhaust duct hole, use pipe hoop lock expansion pipe and the exhaust duct to screw decorative plate positioning
    3. Tighten the gas-collecting hood
    4. Connect exhaust outlet and exhaust system


    The attention of extraction hood

    1. Push and pull the gas-collecting hood don't too hard
    2. Telescopic pipe with fixed frame in the vertical plane cannot exceed 90 degrees, otherwise rebound
    3. Installation height, smallpox and inspiratory mouth maximum vertical distance 2440 mm, the minimum 1710 mm.
